* Please name the model No. (ST-8LS) when negotiation.
* Thread: BS21, ANSI B2.1 or DIN-259.
* Working Temperature: 120℃
* Max. Temperature: 220℃
* Test Pressure: Body 32 kgf/cm2 (Hydrostatic)
* Working Pressure: 0.3 kgf/cm2 – 16 kgf/cm2
Material:

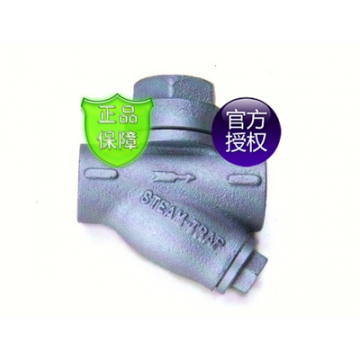

Model: ST-8LS
Body IRON
Bonnet/Plug IRON
Seat SS 410
Disc SS 304
Seal PTFE
Packing PTFE
Screen SS 304
DIMENSION mm
Size inch 1/2 3/4 1
mm 15 20 25
L 95 105 110
H 56 65 70
