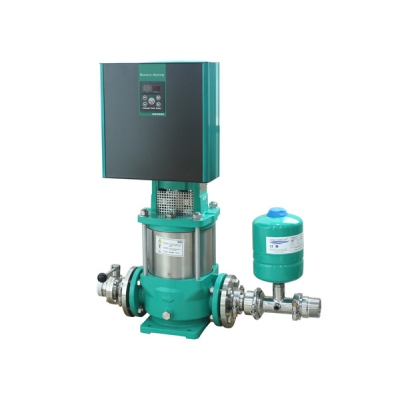

G512智能供水设备
G512 智能供水设备
技术数据
最大:18m3/h
最高:55m
泵送液体温度范围:-15--+115
应用范围
液体输送,清洗系统,冷却及空调系统,供水系统,水处理系统,工厂,锅炉给水系统
性能及优点
应用范围广,智能化程度高,高效、高可靠,管道式设计,易维护,节省空间。
| 型号 | 额定流量 | 额定扬程 | 功率 | 电压 | 配泵型号 | |
| G512-3-101 | 3 | 101 | 2.2 | 3 | 220v/280v | MVI410 |
| G512-3-143 | 143 | 3 | 4 | 220v/280v | MVI414 | |
| G512-3-71 | 71 | 1.5 | 2 | 220v/280v | MVI407 | |
| G512-6-60 | 6 | 60 | 2.2 | 3 | 220v/280v | MVI806 |
| G512-6-85 | 85 | 3 | 4 | 220v/280v | MVI808 | |
| G512-6-113 | 113 | 4 | 5 | 380v | MVI811 | |
| G512-6-144 | 144 | 5.5 | 7 | 380v | MVI814 | |
| G512-9-52 | 9 | 52 | 2.2 | 3 | 220v/280v | MVI806 |
| G512-9-74 | 74 | 3 | 4 | 220v/280v | MVI808 | |
| G512-9-100 | 100 | 4 | 5 | 380v | MVI811 | |
| G512-9-128 | 128 | 5.5 | 7 | 380v | MVI814 | |
| G512-12-44 | 12 | 44 | 3 | 4 | 380v | MVI1603 |
| G512-12-163 | 163 | 11 | 14.5 | 380v | MVI1611 | |
| G512-12-118 | 118 | 7.5 | 10 | 380v | MVI1608 | |
| G512-12-58 | 58 | 4 | 5 | 380v | MVI1604 | |
| G512-12-84 | 84 | 5.5 | 7 | 220v/280v | MVI1606 | |
| G512-15-40 | 15 | 40 | 3 | 4 | 220v/280v | MVI1603 |
| G512-15-53 | 53 | 4 | 5 | 380v | MVI1604 | |
| G512-15-79 | 79 | 5.5 | 7 | 380v | MVI1606 | |
| G512-15-110 | 110 | 7.5 | 10 | 380v | MVI1608 | |
| G512-15-154 | 154 | 11 | 14.5 | 380v | MVI1611 | |
| G512-18-147 | 18 | 147 | 11 | 14.5 | 380v | MVI1611 |
| G512-18-31 | 31 | 3 | 4 | 220v/280v | MVI1603 | |
| G512-18-47 | 47 | 4 | 5 | 380v | MVI1604 | |
| G512-18-73 | 73 | 5.5 | 7 | 380v | MVI1606 | |
| G512-18-103 | 103 | 7.5 | 10 | 380v | MVI1608 | |
| G512-21-58 | 21 | 58 | 5.5 | 7 | 380v | MVI1606 |
| G512-21-79 | 79 | 7.5 | 10 | 380v | MVI1608 | |
| G512-21-119 | 119 | 11 | 14.5 | 380v | MVI1611 | |
| G512-21-149 | 149 | 15 | 20 | 380v | MVI1614 | |
| G512-21-38 | 38 | 4 | 5 | 380v | MVI1604 | |
| G512-24-47 | 24 | 47 | 5.5 | 7 | 380v | MVI3203 |
| G512-24-61 | 61 | 7.5 | 10 | 380v | MVI3204 | |
| G512-24-91 | 91 | 11 | 14.5 | 380v | MVI3206 | |
| G512-24-123 | 123 | 15 | 20 | 380v | MVI3208 | |
| G512-24-153 | 153 | 18.5 | 24.5 | 380v | MVI3210 | |
| G512-27-58 | 27 | 58 | 7.5 | 10 | 380v | MVI3204 |
| G512-27-147 | 147 | 18.5 | 24.5 | 380v | MVI3210 | |
| G512-27-88 | 88 | 11 | 14.5 | 380v | MVI3206 | |
| G512-27-45 | 45 | 5.5 | 7 | 380v | MVI3203 | |
| G512-27-119 | 119 | 15 | 20 | 380v | MVI3208 | |
| G512-30-42 | 30 | 42 | 5.5 | 7 | 380v | MVI3203 |
| G512-30-55 | 55 | 7.5 | 10 | 380v | MVI3204 | |
| G512-30-87 | 87 | 11 | 14.5 | 380v | MVI3206 | |
| G512-30-118 | 118 | 15 | 20 | 380v | MVI3208 | |
| G512-30-145 | 145 | 18.5 | 24.5 | 380v | MVI3210 | |
| G512-33-141 | 33 | 141 | 18.5 | 24.5 | 380v | MVI3210 |
| G512-33-39 | 39 | 5.5 | 7 | 380v | MVI3203 | |
| G512-33-52 | 52 | 7.5 | 10 | 380v | MVI3204 | |
| G512-33-83 | 83 | 11 | 14.5 | 380v | MVI3206 | |
