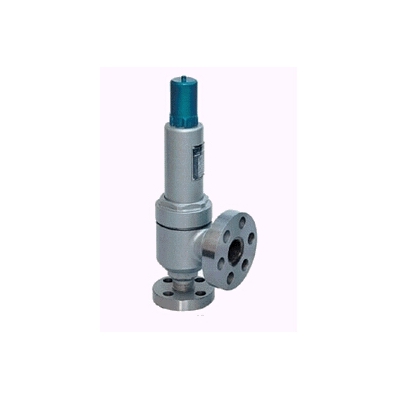

【A41Y弹簧微启封闭式高压安全阀】适用于工作温度≤200℃空气、氮氢混合气、水等介质的设备和管路上。A41Y-160P/320P、A41Y-160R/320R型适用于工作温度≤200℃有腐蚀性的气体或液体介质的设备和管路上，作为超压保护装置。
【A41Y弹簧微启封闭式高压安全阀】主要零部件材料：
|
NO |
零件名称 |
A41Y-160材料 |
A41Y-160P材料 |
A41Y-160R材料 |
|
1 |
法兰 |
35/35CrMoA |
2Cr13 |
1Cr18Ni9Ti |
|
2 |
阀座 |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
3 |
阀体 |
35/40 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
4 |
阀瓣 |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
5 |
导向套 |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
6 |
弹簧 |
50CrVA |
50CrVA包覆氟塑料 |
50CrVA包覆氟塑料 |
|
7 |
阀杆 |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
|
8 |
阀盖 |
ZG230-450 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
|
9 |
调整螺杆 |
45 |
2Cr13 |
2Cr13 |
|
10 |
阀帽 |
ZG200-400 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
|
|
阀座、阀瓣密封面 |
堆焊Co基硬质合金 |
||
【A41Y弹簧微启封闭式高压安全阀】外形尺寸和连接尺寸：
|
型号 |
公称 |
do |
d |
M |
D |
K |
Z-ød |
b |
d1 |
M1 |
D1 |
K1 |
Z1-ød1 |
b1 |
L |
L1 |
≈H |
|
A41Y-160 |
15 |
8 |
20 |
M24×2 |
95 |
60 |
3-18 |
20 |
/ |
M33×2 |
36 |
/ |
/ |
/ |
50 |
80 |
85 |
|
20 |
10 |
25 |
M27×2 |
95 |
60 |
3-18 |
20 |
/ |
M33×2 |
48 |
/ |
/ |
/ |
50 |
80 |
85 |
|
|
25 |
12 |
28 |
M33×2 |
105 |
68 |
3-18 |
20 |
/ |
M33×2 |
48 |
/ |
/ |
/ |
50 |
80 |
85 |
|
|
A41Y-160 |
10 |
8 |
18 |
M24×2 |
95 |
60 |
3-18 |
20 |
29 |
M42×2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
15 |
8 |
20 |
M24×2 |
95 |
60 |
3-18 |
20 |
29 |
M42×2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
|
20 |
10 |
27 |
M33×2 |
105 |
68 |
3-18 |
20 |
29 |
M42×2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
|
25 |
12 |
28 |
M33×2 |
105 |
68 |
3-18 |
20 |
50 |
M64×3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
|
32 |
12.14.16 |
37 |
M42×2 |
115 |
80 |
4-18 |
22 |
50 |
M64×3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
|
40 |
20 |
47 |
M52×2 |
165 |
115 |
6-26 |
28 |
65 |
M80×3 |
200 |
145 |
6-29 |
40 |
165 |
165 |
350 |
|
|
50 |
25 |
58 |
M64×3 |
165 |
115 |
6-26 |
32 |
80 |
M100×3 |
225 |
170 |
6-33 |
80 |
165 |
165 |
380 |
|
|
A41Y-320 |
10 |
8 |
18 |
M24×2 |
95 |
60 |
3-18 |
20 |
29 |
M42×2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
15 |
8 |
27 |
M33×2 |
105 |
68 |
3-18 |
20 |
29 |
M42×2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
|
20 |
10 |
30 |
M36×2 |
110 |
75 |
3-18 |
20 |
29 |
M42×2 |
115 |
80 |
4-18 |
22 |
95 |
100 |
261 |
|
|
25 |
12 |
35 |
M42×2 |
115 |
80 |
4-18 |
22 |
50 |
M64×3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
|
32 |
12.14.16 |
41 |
M48×2 |
135 |
95 |
4-22 |
25 |
50 |
M64×3 |
165 |
115 |
6-26 |
32 |
130 |
135 |
285 |
|
|
40 |
20 |
58 |
M64×2 |
165 |
115 |
6-26 |
32 |
65 |
M80×3 |
200 |
145 |
6-29 |
40 |
165 |
115 |
350 |
|
|
50 |
25 |
70 |
M80×2 |
200 |
145 |
6-29 |
40 |
80 |
M100×3 |
225 |
170 |
6-33 |
50 |
165 |
165 |
380 |
