聚丙烯折叠滤芯|聚丙烯膜折叠滤芯生产10 20

抢购进度:
1

产 品 价 格: ¥1.00/支

品牌 / 型号:
万和芯
配 送 仓 库:
河南 新乡市现货
购 买 数 量:
总量:300/支, 最少起订量:1/支
发 货 期 限:
自付款之日起 14 日内发货
浏 览 次 数:
2813访问
更 新 时 间:
2020-03-06 20:56

立即购买加入购物车人工咨询

发票支持 普通发票 增值税发票
配送支持 送货上门
支付支持 支付宝 银行转帐
  • 交易流程
  • 购买产品

  • 确定转化订单

  • 支付订单

  • 完成交易

  • 品牌: 万和芯
  • 过滤介质: 疏水性聚四氟乙烯微孔
  • 适用对象: 有机溶剂、各种醇类、
  • 过滤精度: 可定制

其他: 加入收藏违规举报诚信档案更多产品

直供空压机|制冷压缩机精油过滤YPM160-15

产品介绍 / Product Introduction

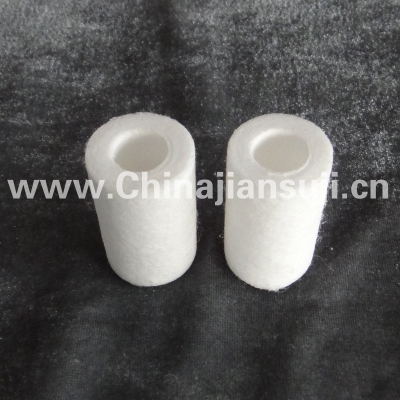

聚丙烯滤芯是一种以超细聚丙烯纤维滤材为过滤介质的固定孔径深层过滤芯,滤材符合FDA相关要求。过滤精度范围从0.1μm至60μm,其特有的低压差、高流通量、使用寿命长的特性,是预过滤的首选产品。全聚丙烯结构具有性能稳定和广泛的化学相容性。

Polypropylene filter is a kind of firter that adopt ultra-fine polypropylene fiber as the filter media, is a fixed aperture deep filter element, filter media meet FDA requirements. Filtering accuracy ranging from 0.1um to 60μm, its unique low dropout, high liquidity, long using life characteristics, is pre-filtered first choice. All-polypropylene structure with stable performance and a wide range of chemical compatibility.



应用领域 / Application Fields

医药工业:药液、细胞碎片、生物制品等过滤。
化学工业:有机溶剂、化学试剂、墨水、电镀液等过滤。
电子工业:反渗透水系统预过滤、去离子水系统预过滤。
气体过滤:压缩空气、氮气、二氧化碳等过滤。
食品工业:生活饮用水、矿泉水、饮料、啤酒、葡萄酒、果酒等过滤。
其它工业:感光抗蚀剂、磁性介质等过滤。


Pharmaceutical industry: Pharmaceuticals liquid, cell debris, biological products and so on.
Chemical industry: Organic solvents, chemicals, ink, plating fluid and so on.
Food industry: Drinking water, mineral water, soft drinks, beer, wine, cider and so on.
Other industries: Photosensitive resist, magnetic media, etc.
Electronics Industry: Reverse osmosis water filtration system pre-filter, deionized water pre-filter system.
Gas filter: Compressed air, nitrogen, carbon dioxide and other filter.


三、 产品规格及技术参数 / Specifications & Technical Parameters


过滤精度(Precision):0.1,0.2,0.45,0.65,1,2,3,5,10,20,30,60 (μm)。
滤芯长度(Filter Length):4"、5"、10"、20"、30"、40"。
密封材料:硅橡胶、丁腈橡胶、三元乙丙橡胶、氟橡胶 。 Sealing material: Silicone rubber, NBR, EPDM, Viton.
有效过滤面积(Effective filtration area):0.4~0.7 m/10" 。
滤芯直径(Filter diameter):69.0 mm。
最高工作温度(Maximum operating temperature):80℃,0.28MPa 。
最大正压差(The maximum positive pressure):0.42MPa(25℃)。
最大反压差(The maximum anti pressure):0.28MPa(25℃)。
灭菌条件:(Sterilization condition):121℃ 30 min。

过滤介质:聚丙烯纤维膜。
Filter media: Polypropylene fiber membrane.
上下流支撑材质:聚丙烯。
The up and downstream support material: Polypropylene.
支撑架及结构元件:聚丙烯 。
Support frame and structural components: Polypropylene.


产品介绍 / Product Introduction


疏水性聚四氟乙烯滤芯,其过滤介质为疏水性聚四氟乙烯微孔滤膜,疏水性强、截留率高、有极好的化学耐受性和热稳定性,强度好,耐正向和反向压力冲击。

Hydrophobic PTFE filter, the filter media is hydrophobic PTFE microporous membrane, good hydrophobicity, high rejection rate, excellent chemical resistance and thermal stability, good strength, can bear the forward and reverse pressure shocks.


应用领域 / Application Fields

化学工业:有机溶剂、各种醇类、化学试剂等过滤。
无菌贮罐呼吸器、空气发酵罐等过滤。
气体过滤:压缩空气、氮气、二氧化碳等的除菌过滤。

Gas Filter: Compressed air, nitrogen, carbon dioxide and other sterilization.
Aseptic tank respirators, air fermentation tanks.
Chemical industry: Organic solvents, various alcohols, chemical reagents,ect.

三、 产品规格及技术参数 / Specifications & Technical Parameters


过滤精度(Filtration precision):0.1、0.2、0.45、1(μm)。
滤芯长度(Filter Length):5"、10"、20"、30"、40"。
密封材料:硅橡胶、丁腈橡胶、三元乙丙橡胶、氟橡胶。
Sealing material: Silicone rubber, NBR, EPDM, Viton.
密闭方式:热熔焊接。
Closed mode: Fusion welding.
有效过滤面积(Effective filtration area):≥0.6 m/10" 。
滤芯直径(Filter diameter):69.0 mm 。
最高工作温度(Maximum operating temperature):80℃,0.17 Mpa。
最高耐受温度(Maximum tolerance temperature):140℃,0.27 Mpa。
滤芯插口型号/端盖形式(16张) 。
Filter Socket Model / Cover Type (16)。
最大正压差(The maximum positive pressure):0.42 Mpa(25℃)。
最大反压差( Maximum anti pressure):0.28 Mpa(25℃)。
灭菌条件(Sterilization condition):121℃ 30 min。

过滤介质:疏水性聚四氟乙烯微孔滤膜。
Filter media: Hydrophobic PTFE microporous membrane.
上下流支撑材质:聚丙烯。
The up and downstream support material: Polypropylene.
支撑架及结构元件:聚丙烯。
Support frame and structural components: Polypropylene.


公司提供定制,加工,解决方案。
产品技术参数
品牌: 万和芯
过滤介质: 疏水性聚四氟乙烯微孔
适用对象: 有机溶剂、各种醇类、
过滤精度: 可定制

• 包装

纸盒包装,木箱包装
